A DIELECTRIMETER IS A DEVICE ABLE TO PERFORM BOTH HPOT TEST AND INSULATION MEASUREMENT OR TEST.
IT CAN ALSO MAKE SEQUENCES COMBINING BOTH TESTS.

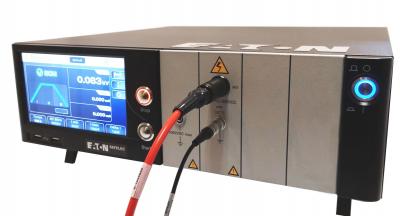

DIELECTRIMETER

DIELECTRIMETER Selection Guide

Product Description Hipot test voltage Hipot power Insulation measurement Insulation max. measurement voltage Communication ports
Dielectrimeters SEFELEC 56-D
Dielectrimeter 50VA:
Hipot Test 5kVA AC - 6kV DC & Insulation 20 to 1000V - 200 GOhms
Touch Screen
Fully compliant to IEC 61010-2-34
5kVAC & 6kVDC 50VA 50 k - 200 GOhms (2TOhms in option) 1000V Ethernet - RS232 - USB - PLC
Dielectrimeters SEFELEC 506-D
Dielectrimeter 500VA: Hipot Test 5kVA AC - 6kV DC & Insulation 20 to 1000V - 200 GOhms
Touch Screen
Fully compliant to IEC 61010-2-34
5kVAC et 6kVDC 500VA 50 k - 200 GOhms (2TOhms in option) 1000V Ethernet - RS232 - USB - PLC
Dielectrimeters PREMIER 2803
Dielectrimeter 200VA,
Hipot test 5 kV AC & 6 kV DC & insulation 50V to 1000V - 9,5 GOhms
5kVAC et 6kVDC 200VA 9,5 GOhms 1000V RS232 - USB - API
CA001
Safety enclosure for 15KV HV tests - Small size.
Internal dimensions : Height: 212 mm x Width: 390 mm x Depth: 424 mm

in addition to SELELEC 5x, RMG and SYNOR, this enclosure is designed to perform HV tests safely.
Dielectrimeters SEFELEC 56-D

0€

Dielectrimeter 50VA:
Hipot Test 5kVA AC - 6kV DC & Insulation 20 to 1000V - 200 GOhms
Touch Screen
Fully compliant to IEC 61010-2-34

5kVAC & 6kVDC
50VA
50 k - 200 GOhms (2TOhms in option)
1000V
Ethernet - RS232 - USB - PLC
Dielectrimeters SEFELEC 506-D

0€

Dielectrimeter 500VA: Hipot Test 5kVA AC - 6kV DC & Insulation 20 to 1000V - 200 GOhms
Touch Screen
Fully compliant to IEC 61010-2-34

5kVAC et 6kVDC
500VA
50 k - 200 GOhms (2TOhms in option)
1000V
Ethernet - RS232 - USB - PLC
Dielectrimeters PREMIER 2803

0€

Dielectrimeter 200VA,
Hipot test 5 kV AC & 6 kV DC & insulation 50V to 1000V - 9,5 GOhms

5kVAC et 6kVDC
200VA
9,5 GOhms
1000V
RS232 - USB - API
CA001

0€

Safety enclosure for 15KV HV tests - Small size.
Internal dimensions : Height: 212 mm x Width: 390 mm x Depth: 424 mm

in addition to SELELEC 5x, RMG and SYNOR, this enclosure is designed to perform HV tests safely.

APPLICATIONS

FOR MANUTACTURERS, LABORATORIES, PRODUCTION LINES, SERVICES AND MAINTENANCE IN ORDER TO COMPLY WITH THE LOW VOLTAGE DIRECTIVE (LVD)
BANDEAUDIELECTRIMMETER
  • cable manufacturer (measurements made on cale drums, on samples, shielding against wires)
  • transformers, power supplies,...
  • components (capacitors, resistances, sensors,…)
  • aeronautic, aerospace sub assemblies (satelites panels, …)
  • connectors, switches, activators, ...
  • test laboratories
  • car industry (splices, electric engines, pumps, …)
  • satellite receivers, decoders, television receivers, ...
  • solar panels (test in between current output and the frame)

TECHNICAL CARATERISTICS

FROM LABORATORY TO PRODUCTION TESTING, OUR RANGE COVERS THE FOLLOWING SPECIFICATIONS :

  • insulation resistance measurement up to 2 TΩ
  • insulation test with DC Voltage from 1V up to 1000 VDC (1V steps)
  • hipot test with our ”delta I” exclusive detection type for non destructive testing, up to 5 kVAC, 6 kVDC
  • 1 single output connexion for 2 tests done in automatic testing
  • destructive hipot testing (for investigation and laboratory use) and hipot at operating temperature
  • GPIB, RS232, Ethernet, 0-10V, PLC available
  • WINPASS-MX software for quality purposes, traceability and professional reporting

Sefelec will reach back to you
