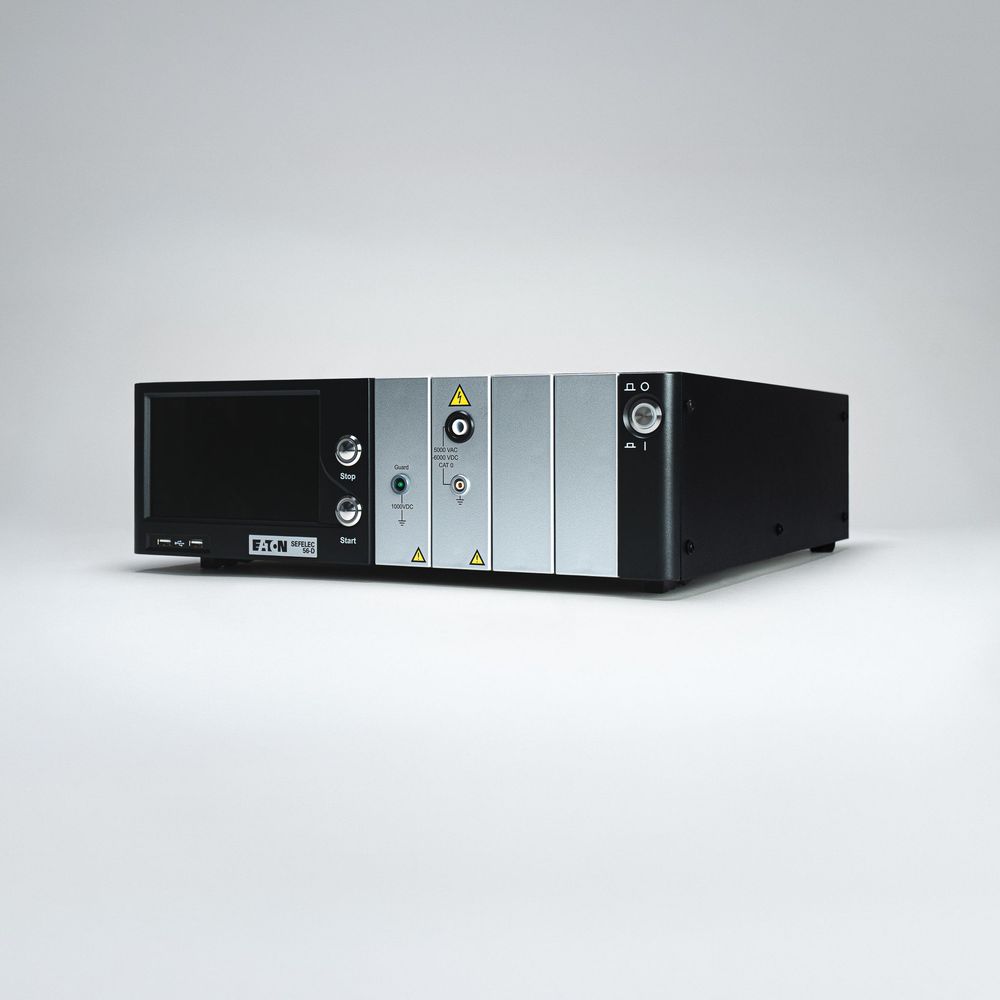

SEFELEC 56-D

The new‑generation SEFELEC 56‑D dielectric tester is a dual‑function instrument designed to perform both dielectric strength tests and insulation measurements. It is built on an architecture combining an ARM Dual‑Core processor with a DSP, ensuring optimal stability and repeatability of measurements. Its high accuracy and fast execution make it perfectly suited for production quality control as well as incoming inspection. This instrument can also be connected to our SYNOR 5000 automatic cable testers to meet extended testing and measurement requirements.

• TECHNICAL SPECIFICATIONS

  Dielectric test voltage

  5 kVAC and 6KVDC

  Dielectric test power

  50 VA

  Insulation measurement

  50 k - 200 GΩ (ohms) (2T Ω in option)

  Maximum insulation test voltage

  1 000V

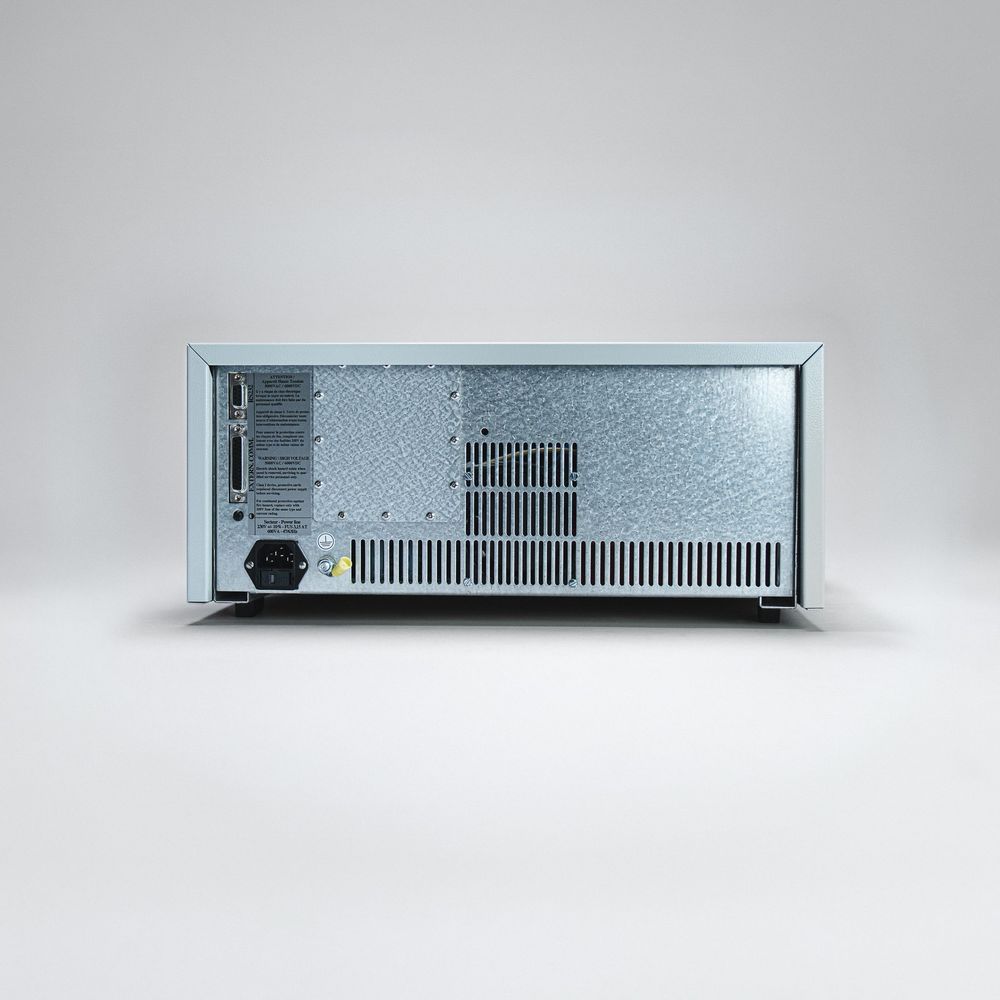

  Communication interfaces

  Ethernet - RS232 - USB - API - Option GPIB
• Dimensions

  Height

  131 mm

  Width

  440 mm

  Depth

  455 mm
