STANDARD IEC 61010-2-034

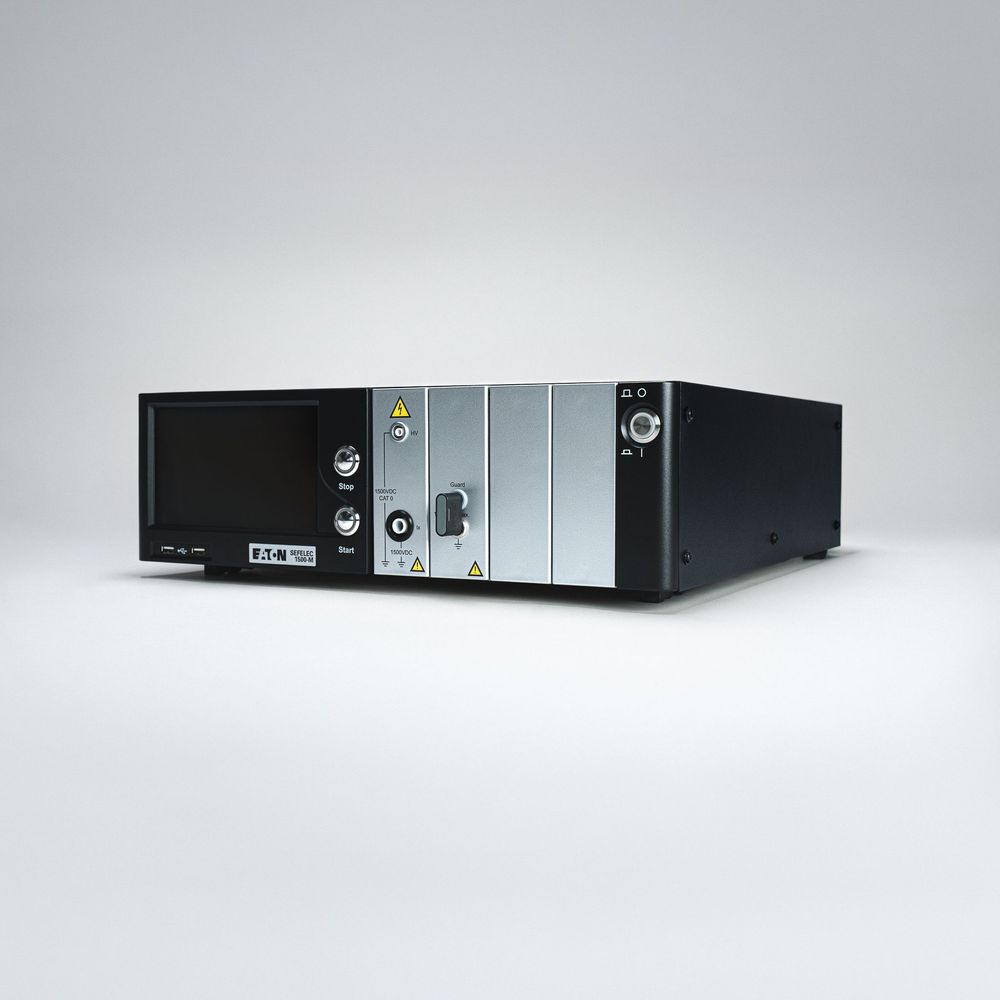

SEFELEC 1500-M

Megohmmeter

The SEFELEC 1500‑M is Eaton’s new‑generation megohmmeter. It is built on an architecture combining an ARM Dual‑Core processor with a DSP, ensuring optimal stability and repeatability of measurements. Its high accuracy and fast execution make it perfectly suited for production quality control as well as incoming inspection. This instrument can also be connected to our SYNOR 5000 automatic cable testers to meet your extended testing and measurement requirements.

Maximum test voltage
1 500V
Maximum measured value
2 000 T Ω
Acurracy
0.2%
HMI (Human‑Machine Interface)
TFT tactile
Communication interfaces
Ethernet - RS232 - USB - API - Option GPIB
Height
131 mm
Width
440 mm
Depth
455 mm

Data sheets

This product works with

SEFELEC 64-SC

External Scanner High-voltage and high current


Winpass MX

Software for measurement devices
