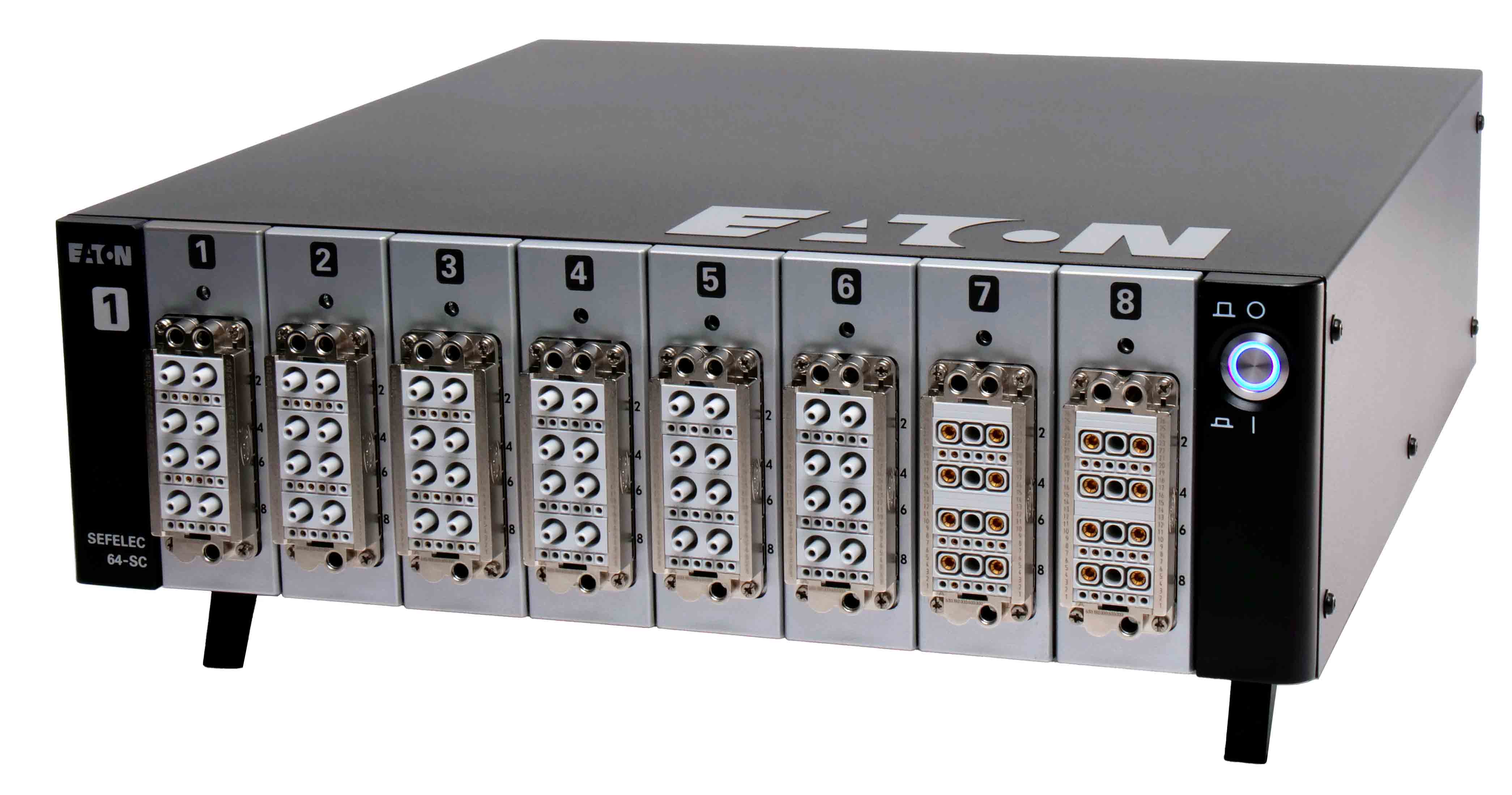

High Voltage & Current Scanner SEFELEC 64-SC

The SEFELEC 64-C is EATON’s new generation scanner, intended for use with dielectric strength testers, dielectric testers, electrical safety testers, megohmmeters and milliohmmeters in all applications requiring automatic switching of high voltage and/or high current test points.

Its density and high performance make the SEFELEC 64-SC an ideal solution for integration into a production line or a control bench.

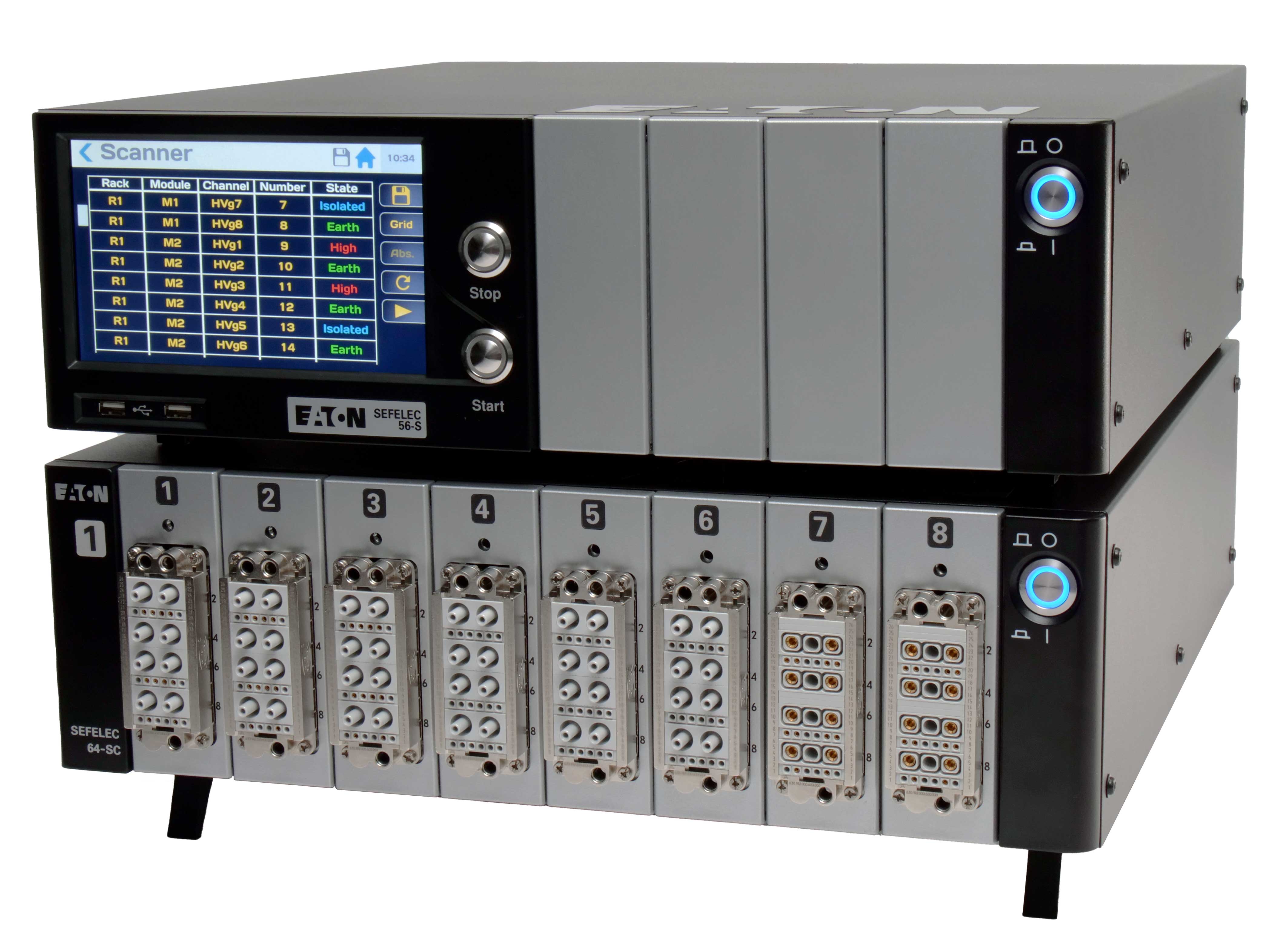

Programmable via the 7” touch screen of the SEFELEC 5x range, operating the scanner is simple and intuitive.

Supervision by the Winpass MX software also offers the generation of customizable test reports.

Product literature

Quote request

Description of scanner - sefelec 64-sc

High density: 8 to 512 channels grouped in 8 channels modules and up to 4 racks of 8 modules

8 channels high voltage modules
Maximum voltage 5kVAC 500VA and 6kVDC
Insulation up to 200GΩ under 1000 VDC can be tied to high potential or grounded or isolated.

8 channels high current modules
Earth Bond Tests under 32A AC max

Programmation & control directly through a SEFELEC 5x
Programmation & control through WINPASS MX software

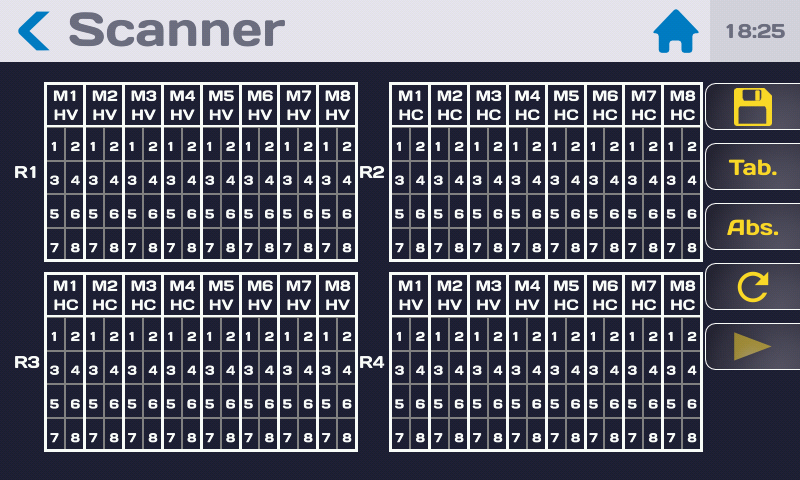

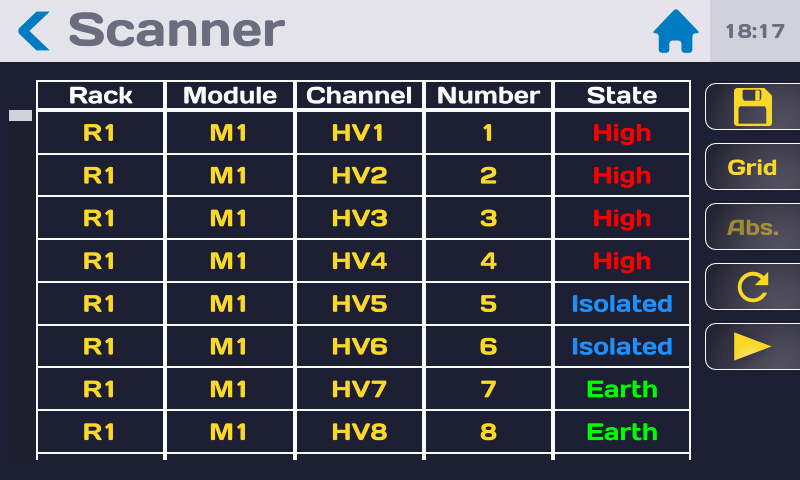

7” TFT Touchscreen 16 millions colors to set configuration through SEFELEC 5x, tests & results display
DSP emboarded for high speed tests
Switching Relays with high performances

IEC 61010-2-034 full compliance, specific safety standard for insulation and dielectric strength meters

Documentation of scanner - sefelec 64-sc

Datasheet ften-sefelec-64-sc-draftpdf 5.27 Mo 04/04/2023
