Description of hipot tester sefelec 56-h
Rigidité diélectrique sous 5kVAC 50VA et 6kVDC
Modes de détection sur seuil courant ou variation
de courant (ΔI)
Fonction brûlage Mode sans détection du courant
Rampes de test programmables
Montée, maintien, descente
Mode multirampes, jusqu’à 7 paliers
Ecran tactile 7” TFT 16 millions de couleurs
pour la programmation, la visualisation des essais
en cours et des résultats
Technologies ARM-Dual core control & Nand 3D
embarquées pour plus de précision, de stabilité et de
répétabilité
DSPs embarqués pour une vitesse de test accrue
Large mémoire interne pour le stockage des
configurations et des résultats de tests
Conforme IEC 61010-2-034, norme de sécurité
spécifique aux mesureurs d’isolement et postes de
rigidité diélectrique.
- Dielectric withstand at 5kVAC 50VA and 6kVDC
- Detection modes with Min/Max current thresholds or flashover detection (ΔI)
- Burning function without current detection
- Programmables test ramps Rise, dwell, fall
- Multi-ramp mode, up to 7 steps
- 7” TFT Multi touchscreen 16 million colors for programming, tests and results display
- ARM-Dual core control & Nand 3D technologies inside for more accuracy, stability and repeatability
- DSPs speeds up measurements and production tests
- Large internal memory for configurations and test results storage
- IEC 61010-2-034 full compliance, specific safety standard for insulation and dielectric strength meters

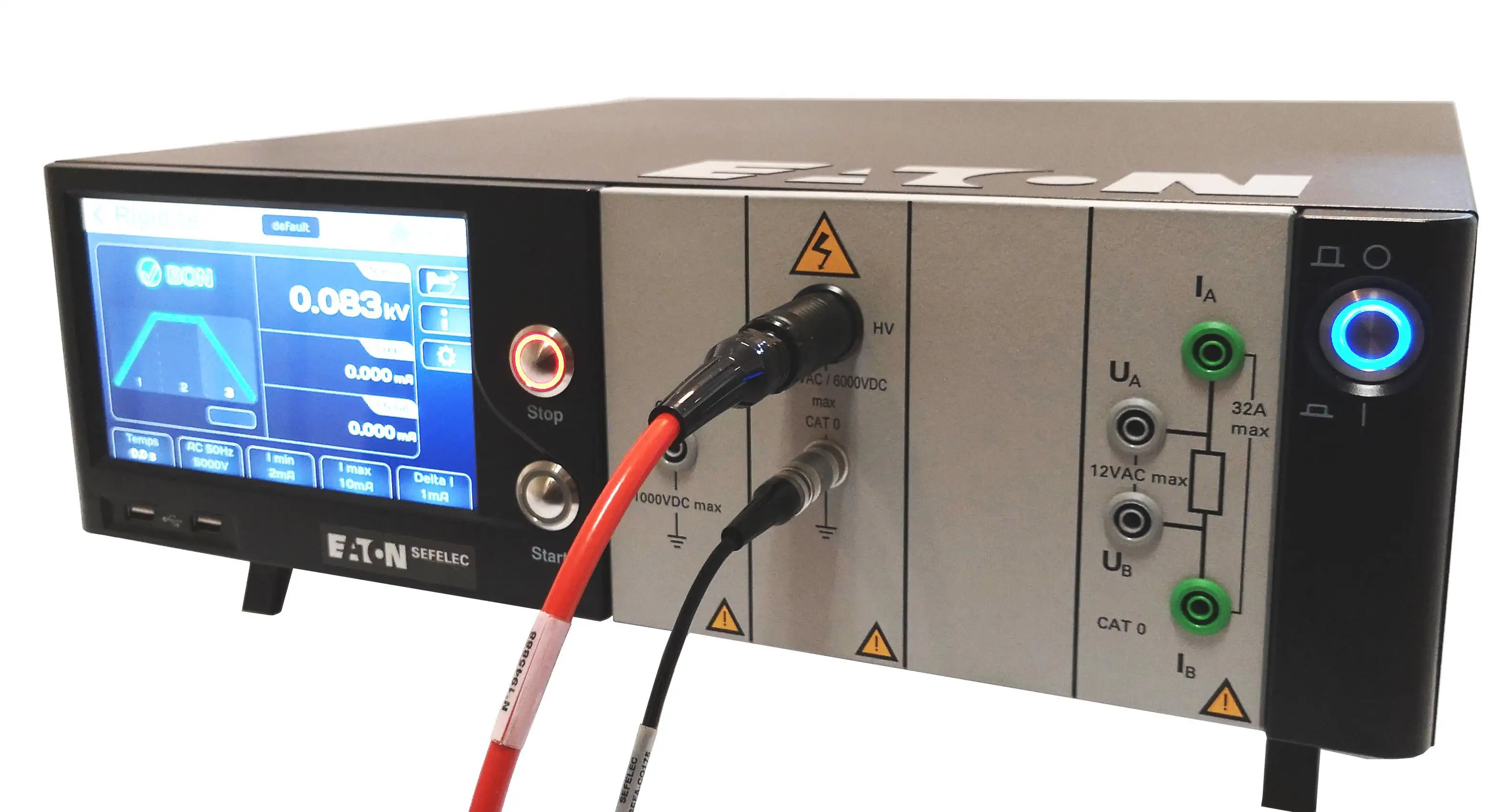

The SEFELEC 56-H is a new generation EATON dielectric strength tester (hipot tester) based and controlled by ARM-Dual Core and DSP technologies providing the best stability and repeatability. The high accuracy and measurement speed are suitable for quality control or incoming inspection departments. The sequence mode makes the SEFELEC 56-H easier to use and integrate in a control or a test-bench. The new SEFELEC Series HMI, with its 7” dual-touch TFT screen, offers simple and intuitive operations.
• Native Ethernet / RS232 / USB / PLC / CAN
• IEEE488-2 Interface as on option
• CAN Bus CAN to drive extension modules (Scanners)
• SIL2 double safety loop
• Automatic measurement range selection
• Sequence mode to combine several successive tests
